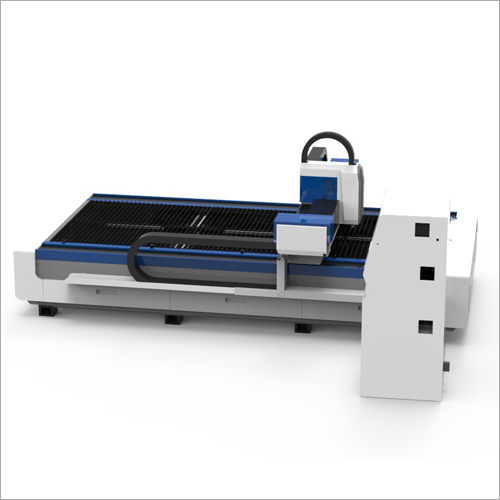

Fiber Laser Cutting Machine

Fiber Laser Cutting Machine
Fiber Laser Cutting Machine
Send Inquiry
Product Code : CORONA+prime
Brand Name : AXICON
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price Range
  • 3600000.00 - 7200000.00 INR
Product Specifications
  • Product Type
  • Laser Cutting Machine
  • Laser Type
  • Fiber Laser
  • Material
  • Crystal, Other, Glass, Stone, Rubber, Plastic, Acrylic, Paper, Leather, Wood, Plywood, Metal
  • Cutting Thickness
  • 5 Millimeter (mm)
  • Cutting Area
  • 3000 Square Millimeter (mm2)
  • Cutting Speed
  • 120 m/m
  • CNC Or Not
  • Normal
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Cooling Mode
  • Air Cooling
  • Control Software
  • Cutting Software
  • Graphic Format Supported
  • PLT
  • Control System
  • PLC Control
  • Voltage
  • 380 Volt (v)
  • Weight (kg)
  • 3600 Kilograms (kg)
  • Dimension(L*W*H)
  • 7200*3600*5400 Millimeter (mm)
  • Feature
  • High Performance, Touch Screen, ECO Friendly, High Efficiency, Lower Energy Consumption, Low Noise, Simple Control
  • Color
  • Blue
  • Warranty
  • 1 Year
Product Description

Fiber Laser Cutting Machine is accessible from our firm in different dimensions and functions as per the wide demands of the patrons. This unit is globally known for its excellent quality and smooth performance solutions.

Fiber Laser Cutting Machine has adjustable applications which help to reduce the production costs and effective time. Proposed machine are specialized for glasses, garments, electronics and similar precision work pieces. It requires very low noise and efficient operational methods to use simply for longer life.

The software automatically adjusts the focusing lens to realize automatic perforatingand cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

  • It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
  • The machine is able to finish the platform exchanging within 15s.
  • Adjust mentrange -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
  • Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.
Quality

Fiberlaser cutting machine is equipped with German Atlanta rack, Japanese motor andGerman reducer. The positioning accuracy of the machinetool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10

Features:

  • high speed and acceleration
  • high damping body
  • good rigidity.
  • Cut metal with high precision
  • No physical Contact with the metal
  • Less Opportunity For the material to become contaminated
  • Gives the client Satisfaction
  • High

Specifications:

  • Laser power : 500W | 700W | 1000W | 1500W | 2000W | 3000W
  • Laser source : IPG, Raycus, Max
  • Z-Axis Travel-150 mm
  • Z-Axis Positioning-< + 0.02 mm
  • XY- Axis repeat accuracy-+/- 0.03 mm / 1000 mm
Trade Information
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 1 Per Month
  • Delivery Time
  • 1 Months
  • Packaging Details
  • Wood Packaging
  • Main Domestic Market
  • All India
  • Certifications
  • IEC Certification
